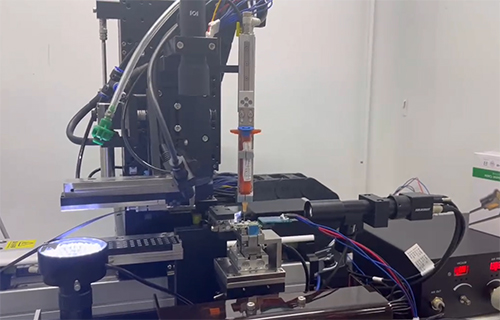

Product Details
- Linear motor drive, characterised by high speed (300 mm/s) and high precision (100 nm)
- High production efficiency, with device coupling time not exceeding 120 seconds (depending on the number of channels)
- Multi-machine vision positioning enables coupling of up to 16optical channels and allows real-time monitoring of the safetydistance between the lens and the chip

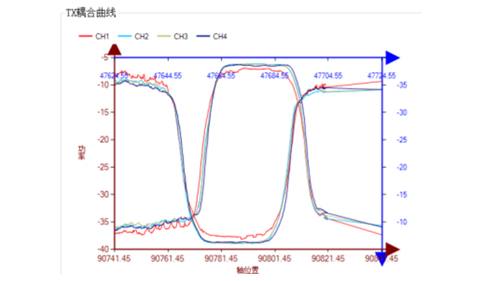

- The multi-channel COB coupler utilises an intelligent coupling search algorithm to achieve power balancing across multiplechannels
- High-precision pressure sensors enable contact detection between the lens and the PCB

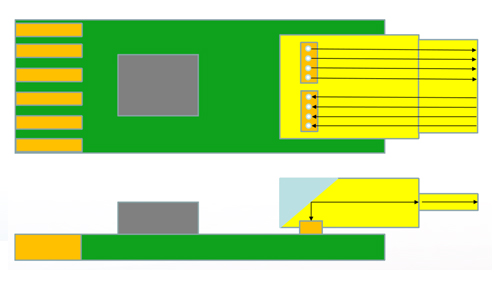

- A single loading process supports sequential coupling of TX andRX lenses, without the need to change grippers or reload materials
Application Fields
-
optical fiber communication
-
fiber optic sensing
-
High power laser
-
Laser projection
