Product Details

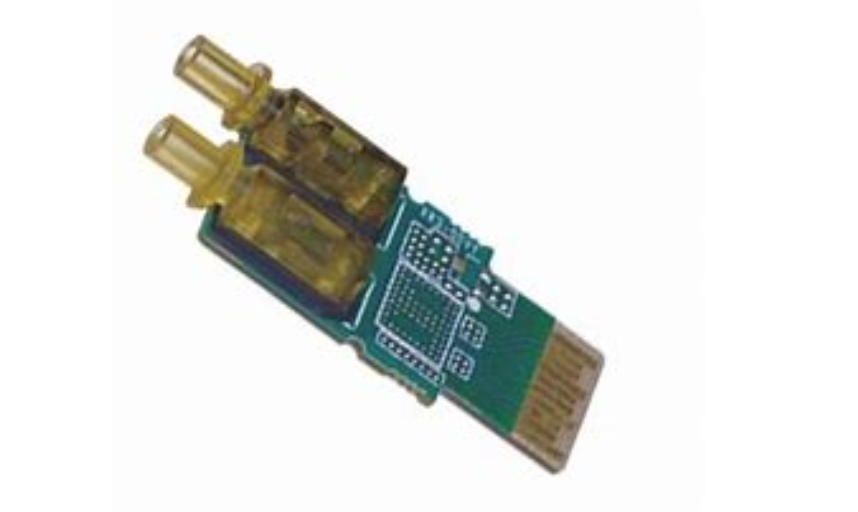

- Fixed ceramic ferrule structure; the lenses are installed with a gentle push via the guiding mechanism, elminating the need for manual fiber insertion and removal
- Lower fixture incorporates pressure sensors to accurately determine the spacing between the lens and the PCB
- Machine vision positioning is avallable as an option to compensate for component tolerances and prevent colisions with thechip during the coupling process
- Optional vision positioning mechanisms and angular displacement stages enable precise identification and adjustment of the lens' s horizontal angle (+ 0.1°)

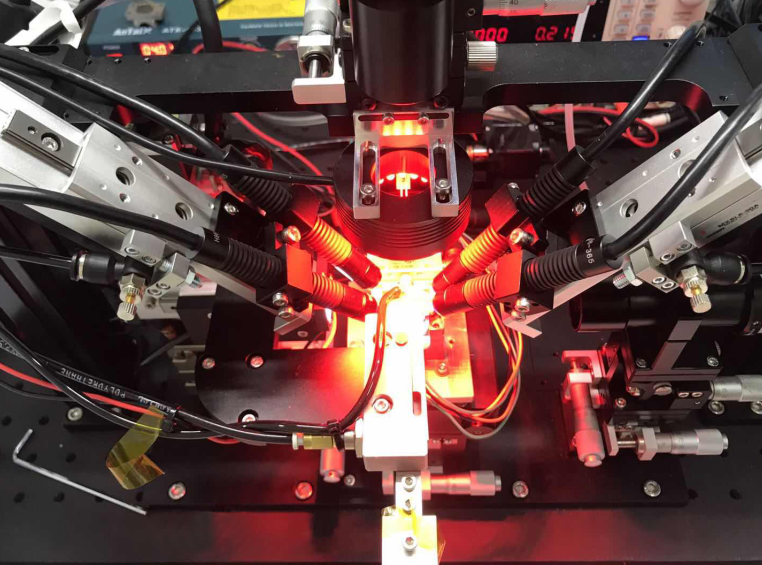

- Five UV lamps cure the adhesive simultaneously, offering high efficiency and excellent uniformity

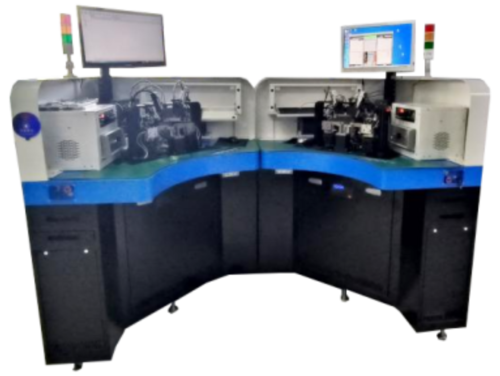

- Supports flexible single-station or dual-station layouts
Application Fields
-
optical fiber communication
-
fiber optic sensing
-
High power laser
-
Laser projection
