Product Details

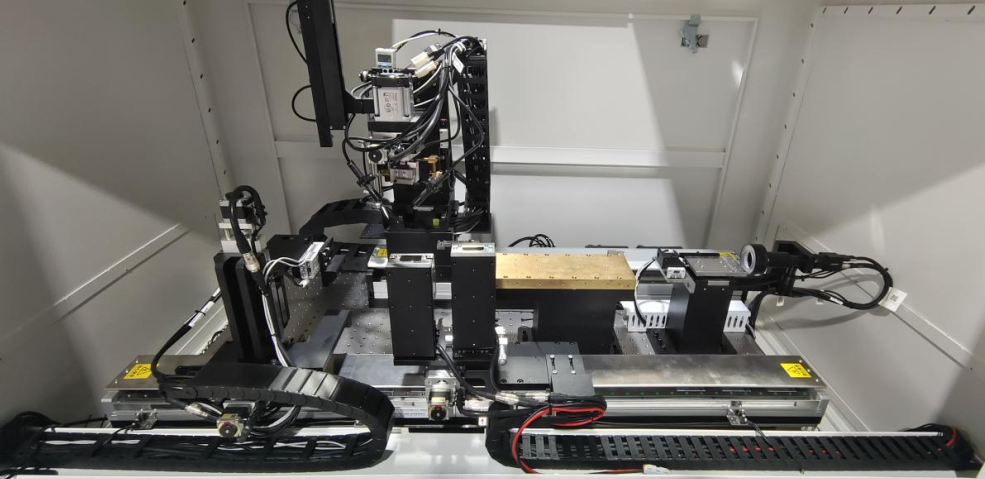

- High-speed,high-precision linear motor drive: Maximum speed of 250 mm/s,with a coupling accuracy of 100 nm
- High-Precision Bottom Detection: Utilizes high-precision displacement sensors for high detection accuracy (1 um sensitivity) and fast response
- Low manual intervention: Excluding component-related factors, the manual intervention rate for a single channel is approximately 2.5%
- High cycle time and efficiency: A high-speed, high-precision linear motor coupling shaft ensures fast speed and cycle times
- Power-to-Spot-Ratio Composite Coupling Method: Utilizes a composite coupling of stepped current and an electric iris to maximize power while ensuring the spots are neatly arranged in front of the focusing lens

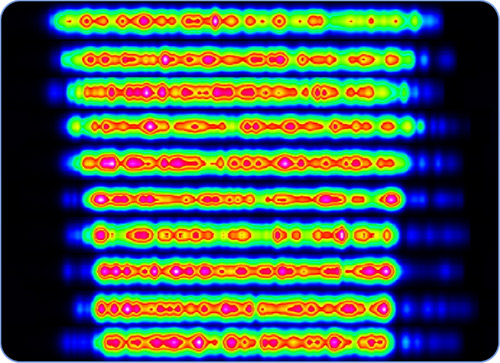

- Spot Arrangement Coupling Method: Utlzes low-curent power-on to couple the reflector angle based on the positions of near- and far-field spots, ensuring the output light is neatly arranged and parallel
Application Fields
-
optical fiber communication
-
fiber optic sensing
-
High power laser
-
Laser projection
